3D Zoetrope:
โ๏ธAbout 3D Zoetrope:
_ 3D zoetropes apply the same principle to three-dimensional models, as already practiced by Czermak (1855) and Desvignes (1860) in predecessors of the zoetrope.
โ
๐ In 1887, Étienne-Jules Marey used a large zoetrope to animate a series of plaster models based on his Chronophotographs (I think I wanted to research and experiment with this too) of birds in flight.
Marey's 1887 zoetrope with ten sculptures of different phases of the flight of a gull
๐๏ธ๐จ๏ธ My Thoughts:
๐ So my idea is basically the same as Marley's Zoetrope. I wanted to create a zoetrope with different phrases of the flight of a butterfly.
โ
๐ Actually what I choose was not 3D but more alike to faking that so I tried to make it realistic as possible.
โ
๐ What I want from this project was to experiment with strobe lighting. You will see it at the end of the experiment. I really the project will work because I did not have anything to auto-spin the zoetrope for me.
โ๏ธPreparation:
โ
_You can see that everything has been prepare since last week. And, I only start a little bit of the work so that is why I delay everything and pushed it to this week.
โ
_Here we have malleable wire, printed butterfly (using thick 4 paper in the printer), and formex cardboard (3mm).
โ๏ธMaking process:
_ I choose the Monarch butterfly as its meaning is a sign that I am on the right path to achieve my goals. (Follow saveourmonarchs.org)
โ

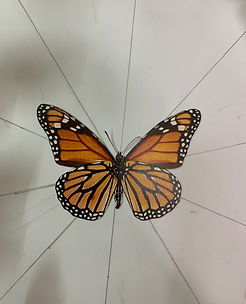

_ So the first step is cutting out the butterfly.
NOTES: I was cutting out my first attempt so butterfly always has their beard right? I was struggling to cut it out or not. So you could see the images compare between the 1st and 2nd cutting attempt.
2nd Cutting Attempt
1st Cutting Attempt
๐ So after cutting out as you see in the left was my next step in making 3D Zoetrope.
โ
๐ I started to attack the malleable wire with the subject is the butterfly. You can see 2 attempts to put the wire onto the subject. One has no control for the wings and one has control for the wings.
โ
_After trying both, I choose the second attempt of course!! Because of the flexibility that I can easily change following the phrases of a butterfly when flying.
โ
_ Here you can compare the both ๐
๐ After cutting and putting wire, we came to step 3 deciding how are these butterflies gonna stand? So based on what I prepare you can see we have 3mm formex cardboard. So based on the right-hand side image you can already see the way I want the subject to stand!
โ
2nd Cutting Attempt
1st Cutting Attempt
๐ Here are some of the first looks of the 3D Zoetrope.
โ
๐ The last step is to put everything into its place - Archetype.
๐ My archetype has a size up to 30x30 cm ( r = 15cm). I also have to buy a bigger size formex (which the thick = 5mm) cardboard to help me cut out the real size I wanted.
โ
๐ And because I decided to use 10 butterflies which equivalent to 10 frames!! So I will have to divide by hand the circle into 10 spots to put in the butterflies.
โ๏ธFinish 3D Zoetrope:
โ

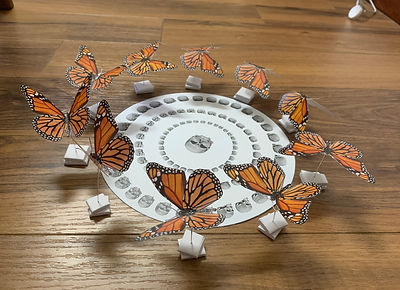

_ So this is my 3D Zoetrope. One of my regrets about this was my subjects were not 3D but also I think it is a really good chance to experiment before decide should I continue to develop it into a real 3D zoetrope product or not.
โ๏ธProduct shots:
โ
_ So before actually experimenting with the strobe lighting. I had layout a studio-like to have a better effect when recording the experiment.
๐ So that why you can see some of the product shots here!!!
โ๏ธExperiment with Strobe lighting / Video record:
โ
_ After finishing the Zoetrope as I have said at the beginning of the experiment, I wanted to experiment with Strobe lighting for this experiment! So you can see down here is my video. ๐
